Overview：The machine consist of hopper , vibrating chamber , couple and motor . There are eccentric wheel,rubber software, main shaft and shaft-bearing in the vibration chamber .The adjustable eccentric hammer is driven to…
Consulting
Description

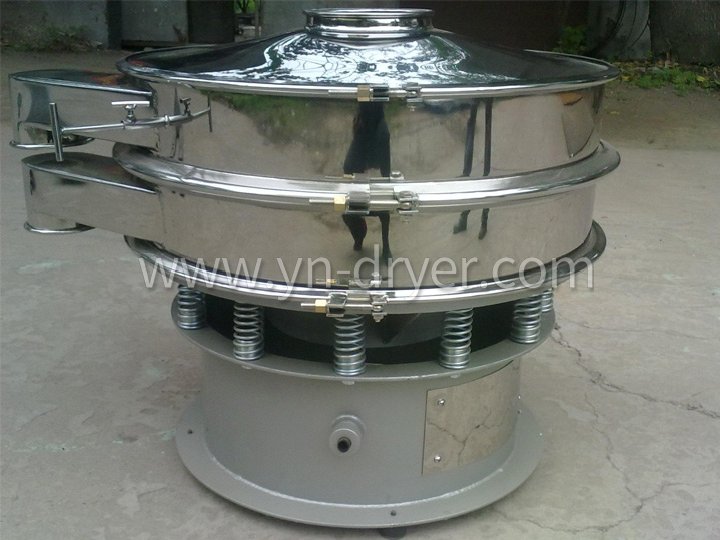

This machine consists of hopper, vibrating chamber, couple and motor. There are eccentric wheel, rubber parts, main shaft, and shaft-bearing in the vibration chamber .The adjustable eccentric hammer is driven to the center line through the motor and generates centrifugal force under the unbalance condition to change the material strength and form an orbit vortex. The amplitude of the hammer can be adjusted according to the properties of material and the mesh screen. It is designed with compact structure, dust free, noise-free, high output capacity, low energy consumption, and easy to maintenance.
Technical Parameter
| Spec | ZS-350 | ZS-515 | ZS-650 | ZS-800 | ZS-1000 | ZS-1500 |
| Capacity (kg/h) | 40-500 | 60-600 | 80-800 | 150-1200 | 300-2000 | 350-2800 |
| Meshes | 12-1200 | 12-200 | 12-200 | 12-200 | 5-325 | 5-325 |
| Power (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 |
| Speed (rpm) | 1380 | 1370 | 1370 | 1500 | 1500 | 1500 |
| Overall dimension (mm) | 540×540×1060 | 710×710×1290 | 880×880×1350 | 1000×1000×1000 | 1100×1100×1200 | 1600×1600×1200 |
| Weight (kg) | 100 | 180 | 250 | 300 | 350 | 400 |
