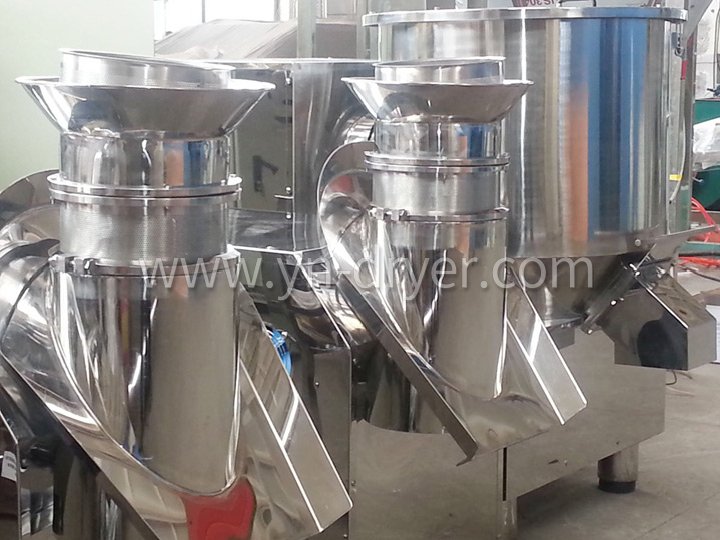

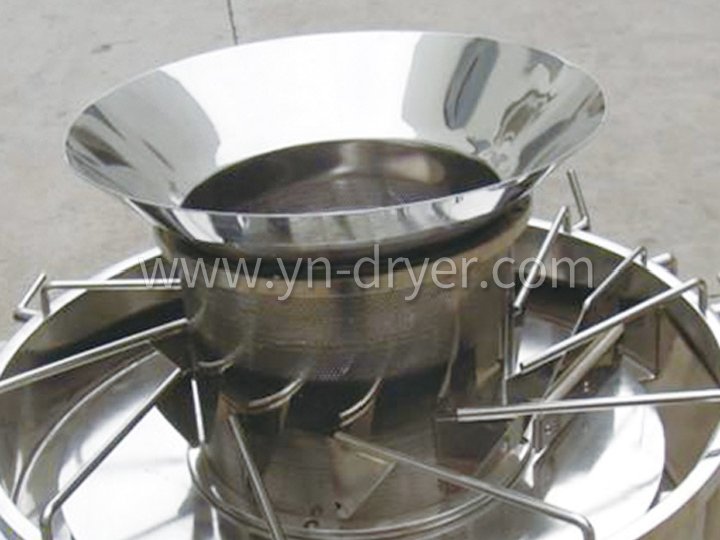

Overview：The machine is mainly suitable for pharmaceutical industry,foodstuff industry,chemical industry,soild drink industry and so on.It can make the stirred raw material granulate the needed the needed granule.Especially…
Consulting
APPLICATION
The machine is mainly used for pharmaceutical industry, foodstuff industry, chemical industry, solid drink industry, and etc. It can make the stirred raw materials into needed particle, especially for the materials that have higher adhesiveness.
FEATURES
All material contacted parts are made of stainless steel and its appearance is beautiful. It is a high efficiency granulator and it can discharge materials automatically so it can avoid the damages caused by manual operations and suitable for continuous production line.
Technical Parameter
| Size of milling knife (mm) | 250 | 300B | 300D |
| Diameter of granule(mm) |
Φ2-2.2 （it may be in accordance with the requirements of costomers） |
Φ1.2-3 （it may be in accordance with the requirements of costomers） |
0.5-6 （it may be in accordance with the requirements of costomers） |
| Overall dimesions（mm） | 700×540×1300 | 880×640×1300 | 1300×800×1200 |
|
Power of motor (kw) |
3 | 4 | 7.5-6 |
| Weight (kg) | 350 | 400 | 780 |
|
Production capcity（kg/h） |
100-200 | 140-400 | 300-600 |
Note:Becaise the rae materials exist in difference,the output in the table is for reference only.
