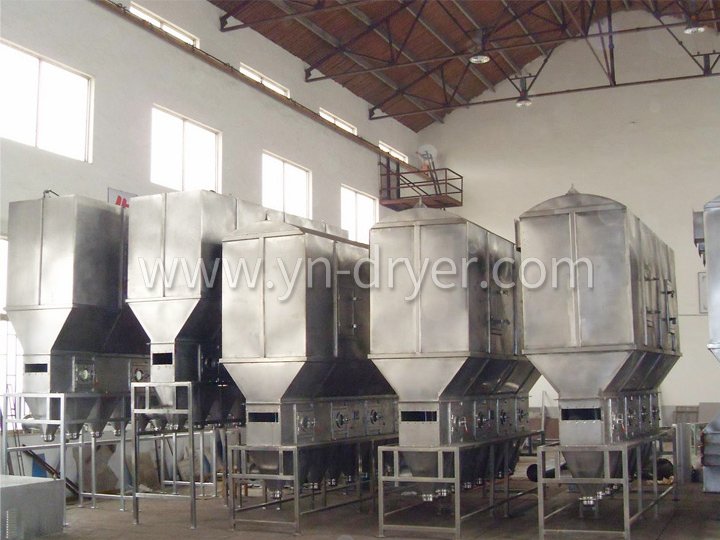

DESCRIPTION

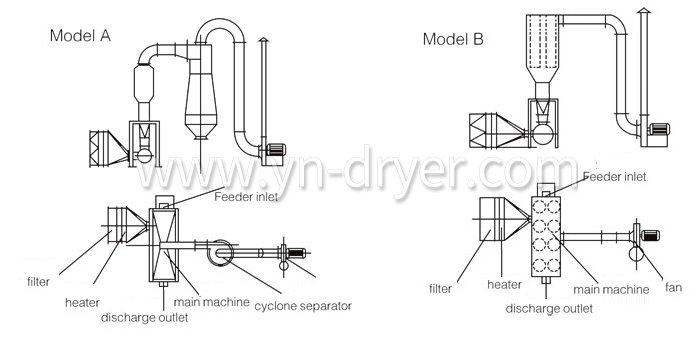

The Boiling dryer is also call as fluidize-bed. It consists of air filter, heater, fluidized-bed main machine, feeder, cyclone separator, cloth bag duster, high-pressure centrifuge fan, and operation table. The dust collector shall be equipped according to the properties of raw materials. You can use cyclone separator or cloth bag duster according to the materials characteristics, the cyclone separator is mainly used for high specific gravity materials and the cloth bag duster is mainly used for powder and small granule materials. The air feeding device and belt conveyor is optional. The heat source can use steam, electricity, hot air furnace as per customer requirements.
APPLICATION
This dryer is widely used for medicines, chemical raw materials, foodstuff, grain processing, feed, and etc. Example applicable materials such as raw medicine, tablet, Chinese medicine, health care products, drinks, feed, resin, citric acid and other powders. The suitable drying diameter of raw material is 0.1~6mm. The best drying diameter of raw material will be 0.5~3mm.
WORKING PRINCIPLE
The granular solid material is fed to fluidized bed dryer by the feeder. The blower will blows the filtered clean hot air heated into the fluidized bed at the bottom of the distribution plate and fluidization to gas-solid heat and mass exchange to heat the solid material. The dried material is discharged from the discharge outlet. The exhaust gas is discharged from the top of the fluidized bed and the solid power will be collected by the cyclone separator or cloth bag duster.
Installation Instructions
1.All equipment should be placed flat, fixed with foot screws, the components of a good seal.
2.Fan can be placed in the outdoor or indoor self silencer. Layout can be adjusted as appropriate depending on the circumstances.
TECHNICAL PARAMETERS
|
Model and specifications Technical Parameters |
XF0.25-1 (Original XF10) |
XF0.25-2 (Original XF20) |
XF0.25-3 (Original XF30) |
XF0.25-6 | XF0.3-2 | XF0.3-4 | XF0.3-6 | XF0.3-8 | XF0.3-10 | XF0.4-4 | XF0.4-6 |
| Area of bed layer (m2) | 0.25 | 0.5 | 1.0 | 1.5 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 1.6 | 2.4 |
| Drying capacity (kg h2O/h) | 10-15 | 20-25 | 30-45 | 52-75 | -30 | 42-60 | 63-90 | 84-120 | 105-150 | 56-80 | 84 |
| Power of fan (kw) | 5.5 | 7.5 | 15 | 22 | 7.5 | 18.5 | 30 | 37 | 48 | 30 | 37 |
| Temperature of air in (oC) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Temperature of air in (oC) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Overall dimensions(main machine) L×W×H (m) |
1×0.6 ×3.35 |
2×0.6 ×3.35 |
4×0.6 ×3.35 |
6×0.6 ×3.35 |
2×0.70 ×3.4 |
4×0.7 ×3.4 |
6×0.7 ×3.4 |
8×0.7 ×3.4 |
10×0.7 ×3.4 |
4×1 ×3.58 |
6×1 ×3.58 |
| Occupied area (m2) | 18 | 25 | 35 | 40 | 25 | 38 | 45 | 56 | 70 | 18 | 56 |
|
Model and specifications Technical Parameters |
XF0.4-8 | XF0.4-10 | XF0.4-12 |
XF0.5-4 (Original XF50) |
XF0.5-6 | XF0.5-8 | XF0.5-10 | XF0.5-12 | XF0.5-14 | XF0.5-16 | XF0.5-18 |
| Area of bed layer (m2) | 3.2 | 4.0 | 4.8 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 |
| Drying capacity (kg h2O/h) | 112-160 | 140-200 | 168-240 | 70-100 | 140-200 | 140-200 | 175-250 | 210-300 | 245-350 | 280-400 | 315-450 |
| Power of fan (kw) | 44 | 66 | 66 | 30 | 66 | 66 | 90 | 90 | 150 | 150 | 165 |
| Temperature of air in (oC) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Temperature of air in (oC) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Overall dimensions(main machine) L×W×H(m) |
8×1 ×3.58 |
10×1 ×3.58 |
12×1.2 ×4.1 |
4×1.2 ×4.1 |
8×1.2 ×4.1 |
8×1.2 ×4.1 |
10×1.2 ×4.1 |
12×1.2 ×4.1 |
14×1.2 ×4.1 |
16×1.2 ×4.1 |
18×1.2 ×4.1 |
| Occupied area (m2) | 74 | 82 | 96 | 50 | 70 | 82 | 100 | 140 | 180 | 225 | 268 |
Note:
1.The feeding way has: a.star feeding b.combining star feeding air conveyor c.belt conveying d.decided by customer;
2.Automatic production can be realized.3.Besides the model above mentioned,the special model can also be designed and manufactured as request.4.According different raw material,the power of fan will be differ.
