Overview:CT-C series hot a ir circulation oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven…
Consulting
WORKING PRINCIPLE

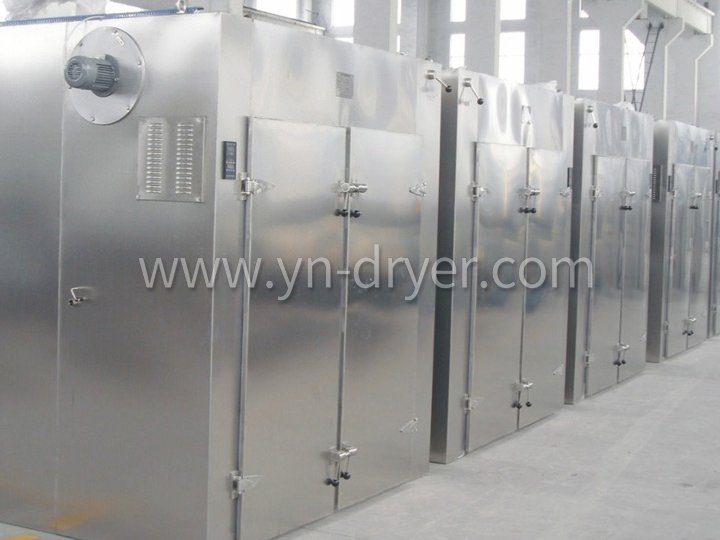

The CT-C Series Hot Air Circulation Drying Oven is a box-like shape which can be easily disassembled and fixed; it includes CT series (centrifugal blower) and CT-C series (axial flow blower). The heat source of the drying oven can be steam and electricity.
This product is equipped with low noise, high temperature proof axial flow blower and automatic temperature control system. The entire circulating system is fully sealed and it increased the thermal efficiency (traditional ovens 3%-7%, current oven 35%-45%), the highest thermal efficiency can reached 70%. The technology of the hot air circulating oven is advanced level in world. It is an energy saving product and it has improved the economic benefits for a lot of Chinese manufacturers. In 1990, the Chinese Medical Management Bureau has issued the industry standard for the drying oven and the standard model number is RXH.
APPLICATION
The drying oven is suitable for drying and dehydration of material and product for pharmaceutical, chemical, food, agricultural, aquatic, light industry, heavy industry; such as medicine raw material, medicine, Chinese herbal medicine, extractum, granules, powder, pill, packing bottle, pigment and dyes, dehydrated vegetables, dried fruit, sausages, plastic, resin, electric elements, varnish, and etc.
FEATURES
1.The hot air is circulated in the oven, high thermal efficiency and energy saving.
2.It utilizes the forced ventilating function with adjustable air distribution plates inside of the oven so the raw material can be dried uniformly.
3.The heat source can be steam, hot water, electricity, and far infrared.
4.Low noise and stable operation. The temperature can be controlled automatically. Installation and maintenance are simple and easy.
5.It has a wide application. It can be used for drying all kinds of materials.
Technical Parameter
Model of industrial standard |
Technical parameter Model specification |
Dry amount each (kg) |
Equipped power (kw) |
Consu- mption of steam (kg/h) |
Area of radiation (m2) |
Amount of air (m3/h) |
Temp- erature difference between up and low (oC) |

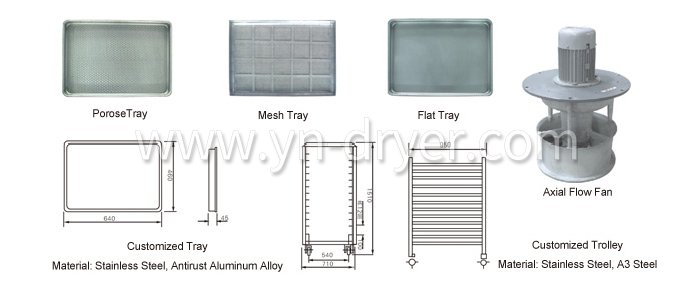

Amount of drying tray to be equipped |

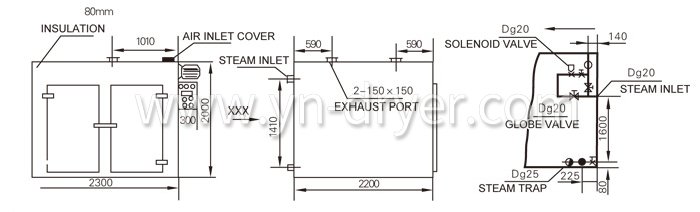

Overall dimensions W×D×H(mm) |
Equip- ped drying trolly |
Equip- ment weight |
RXH-14-B | CT-Ⅰ | 120 | 1.1 | 20 | 20 | 2800 | ±2 | 48 |
2430×1200 ×2375 |
2 | 1200 |
RXH-27-B | CT-Ⅱ | 240 | 2.2 | 40 | 40 | 5200 | ±2 | 96 |
2430×2200 ×2433 |
4 | 1500 |
RXH-41-B | CT-Ⅲ | 360 | 3 | 60 | 80 | 8000 | ±2 | 144 |
3430×2200 ×2620 |
6 | 2000 |
RXH-54-B | CT-Ⅳ | 480 | 4 | 80 | 100 | 9800 | ±2 | 192 |
4460×2200 ×2620 |
8 | 2300 |
RXH-5-C | CT-C-O | 25 | 0.45 | 5 | 5 | 3450 | ±2 | 16 |
1130×1100 ×1750 |
0 | 800 |
RXH-7-C | CT-C-ⅠA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | 24 |
1400×1200 ×2000 |
1 | 1000 |
RXH-14-C | CT-C-Ⅰ | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 |
2300×1200 ×2000 |
2 | 1500 |
RXH-27-C | CT-C-Ⅱ | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 |
2300×2200 ×2000 |
4 | 1800 |
RXH-27A-C | CT-C-ⅡA | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 |
4460×1200 ×2290 |
4 | 1800 |
RXH-41-C | CT-C-Ⅲ | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 |
3430×2200 ×2000 |
6 | 2200 |
RXH-42A-C | CT-C-ⅢA | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 |
2300×3200 ×2000 |
6 | 2200 |
RXH-54-C | CT-C-Ⅳ | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 |
4460×2200 ×2290 |
8 | 2800 |
RXH-25-A |
High effect and high temperature far infrared sterilization oven The power will be equipped in accordance with the requirements of temperature. |
1200×1000 ×1600 |
1 | 1200 |
Material to be dried
This drying oven is suitable for the material and product hot solidication and dry de-watering in the pharmaceutical, chemical, food, farming, side-product,aquatic product, light industries, heavy industries and others industries. Such as:raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster , powder, particle, drinking agent, pill, packing bottle,pigment, dyestuf f, de-watering vegetable, dried fruit piece, sausage, plastics,resin, electric component, baking varnish and etc.
